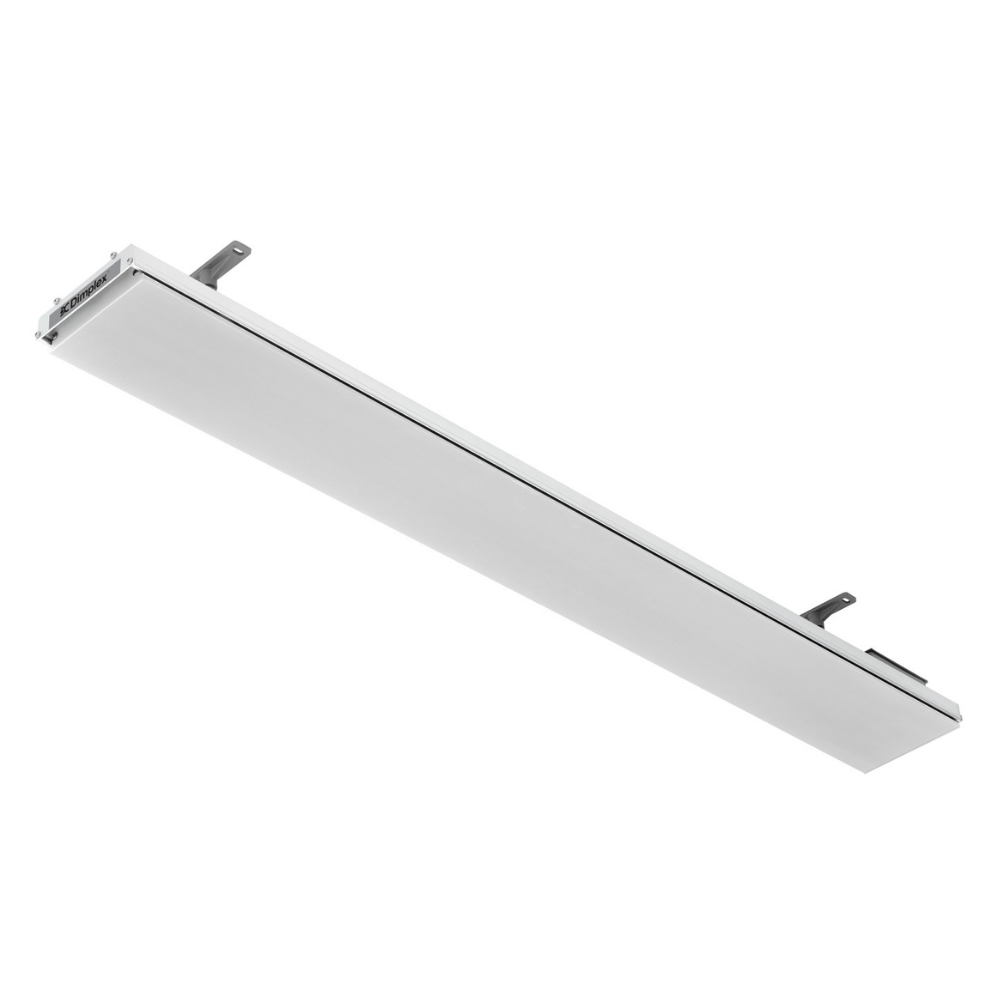

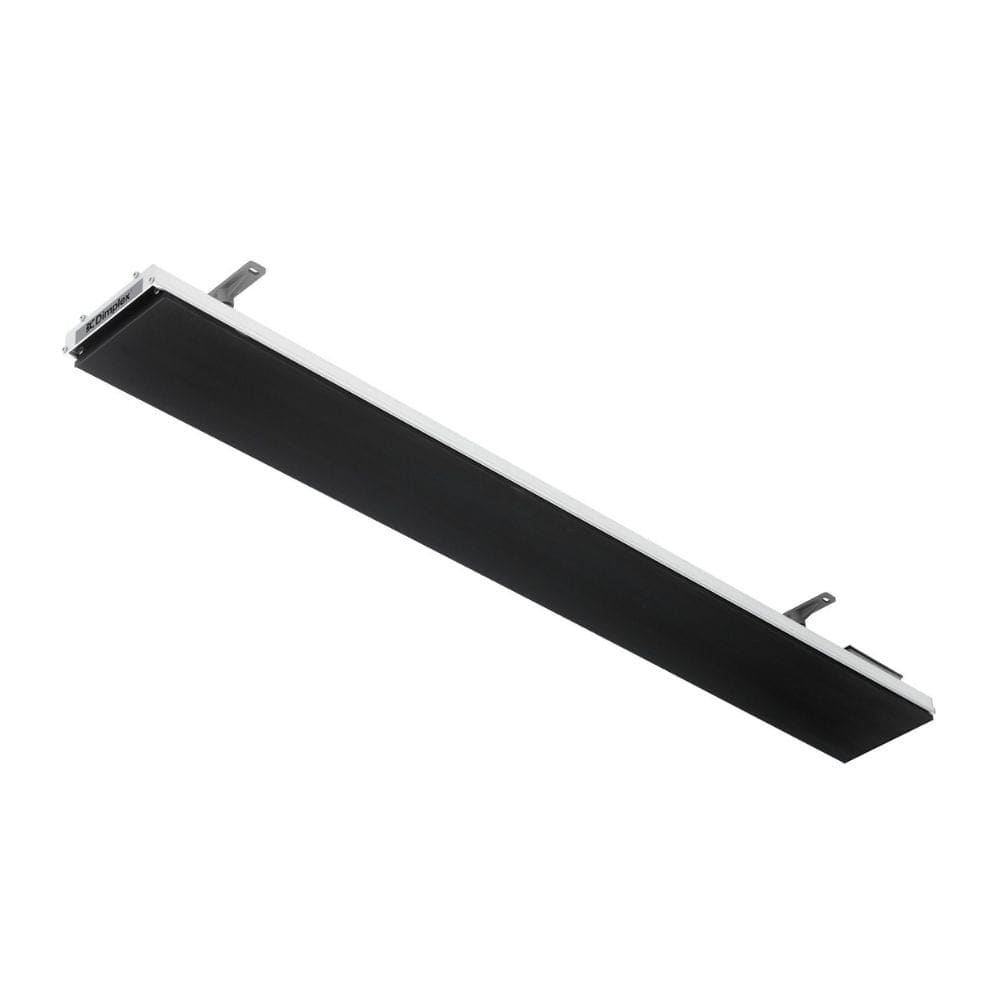

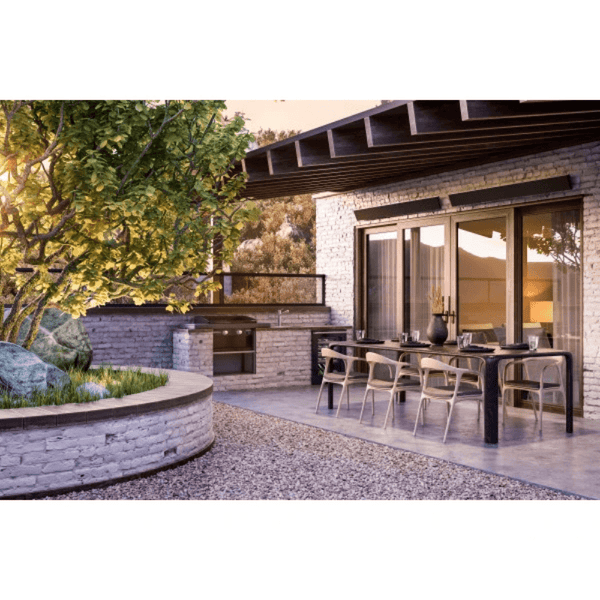

Dimplex DLW Series 36-Inch 1500W 120V Long Wave Infrared Electric Heater

An Electric Heater That Warms Like The Sun, With No Glare

The Dimplex DLW Series 36-Inch Wall/Ceiling Mounted Infrared Electric Heater produces radiant heat, which heats objects and people rather than the air. The DLW heater must be installed in such a way that objects and people are within the direct heat area of the heater.

Position the heater directly above the area to be heated, with an ideal mounting height of 96" to 105". For ceiling heights greater than 105" installation with extension poles (sold separately) is recommended.

In optimal conditions, these units can heat up to 28 sq. ft. in an outdoor enclosed area or up to 35 sq. ft. indoors. Please note that the coverage area will vary depending on various conditions such as wind, temperature, and mounting height. See the relevant section for each installation for more details.

The DLW heater comes with a pair of standard mounting brackets. These adjustable brackets allow direct ceiling or wall mounting and come with preset angle options. The brackets need to be mounted onto a secure frame or wall with a minimum distance between the two brackets

With 1500 watts of heating power, this outdoor/indoor radiant heater can quickly take the chill off any gathering. Best deal here! Buy Today!

What's Included: DLW Series Heater, Mounting Bracket, and User's Manual

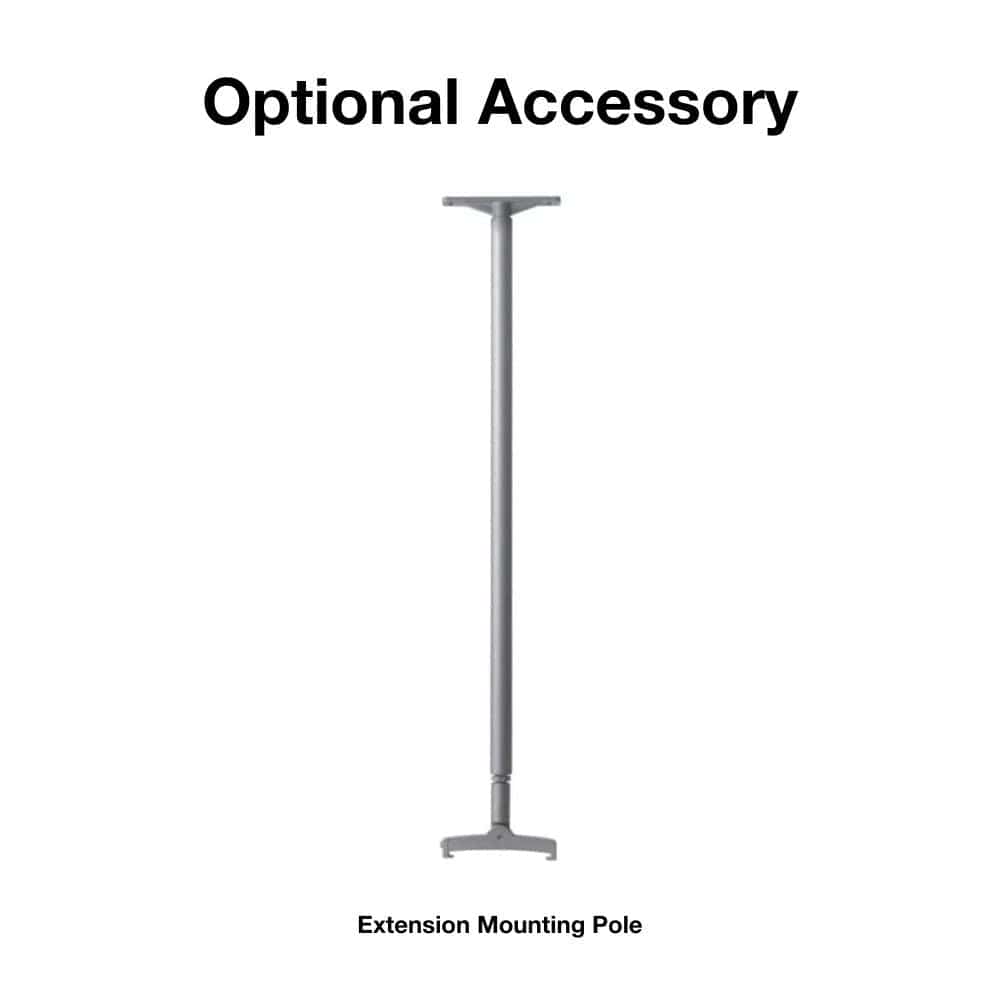

Optional accessories: Extension Poles

Need help determining the right heater and setup for your space and heating needs? Give us a call at (866) 713-2399 or email us at support@modernblaze.com and we'll be happy to help!

Dimplex DLW Series Infrared Electric Heater Videos:

FEATURES:

• Dimplex DLW Series 36-Inch 1500W 120V Infrared Electric Heater is designed for Indoor/Enclosed Outdoor Installation
• Can be Wall or Ceiling Mounted with included Standard Mounting Brackets
• IP55 Weatherproof construction can withstand light to moderate rain or sustained low water pressure
• Anodized Aluminum Casing protects against corrosion, enhances aesthetic qualities, resists scratching, and is one of the most durable surface finishes available.

• Effective radiant heat that warms like the sun, heating people and objects with zero glare
• Designed for permanent hardwired installations on a dedicated circuit

• Simply mount and hardwire using the easy to access top mounted junction box

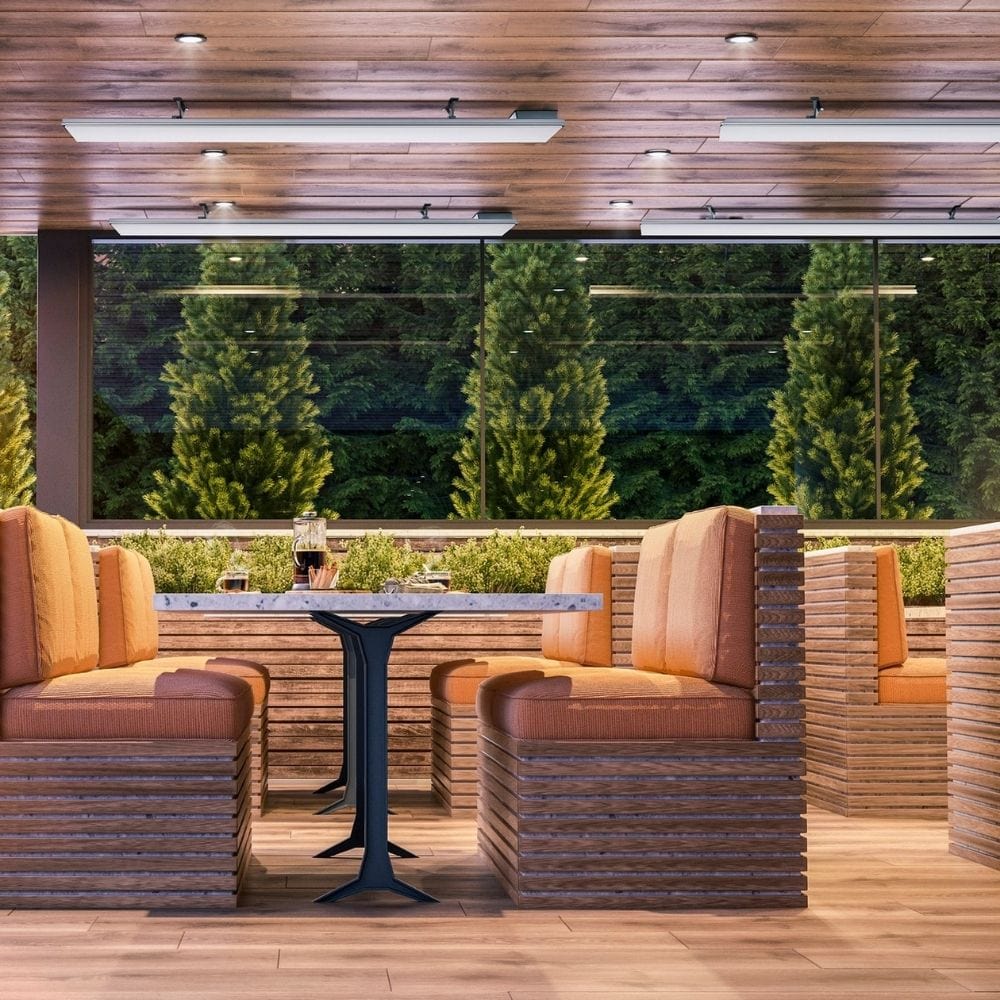

• For ceiling heights greater than 105" installation with extension poles (sold separately) is recommended in order to mount the heaters at the recommended height. This will increase the effectiveness of your DLW heater.
• The adjustable brackets allow direct ceiling or wall mounting and come with preset angle options of parallel, 22.5 °, or 45°.

• The heater must be mounted at least 8 feet above ground level
• Heating Area:
• Indoor: 35 sq ft
• Outdoor (Enclosed Area): 28 sq ft
• 5,118 BTUs
• 1500 Watts

•  120 V

• 12.5 Amps
• UL Listed

• Dimensions: 2" H x 36" L x 6 3/4" W

• Weight: 11.0 lbs
• 1-Year Limited Warranty

What's in the Box:

• DLW Heater - 1 pc.
• Mounting Bracket - 2 pc.
• User's Manual - 1 pc.

Downloads:



Recommendations:

It is recommended that when the heater is installed outdoors it is positioned where it is protected from extreme weather conditions like rain snow and ice and where there are 1, 2, or 3, enclosed sides.

Installation MUST be carried out by a licensed and authorized technician in accordance with local electrical codes
