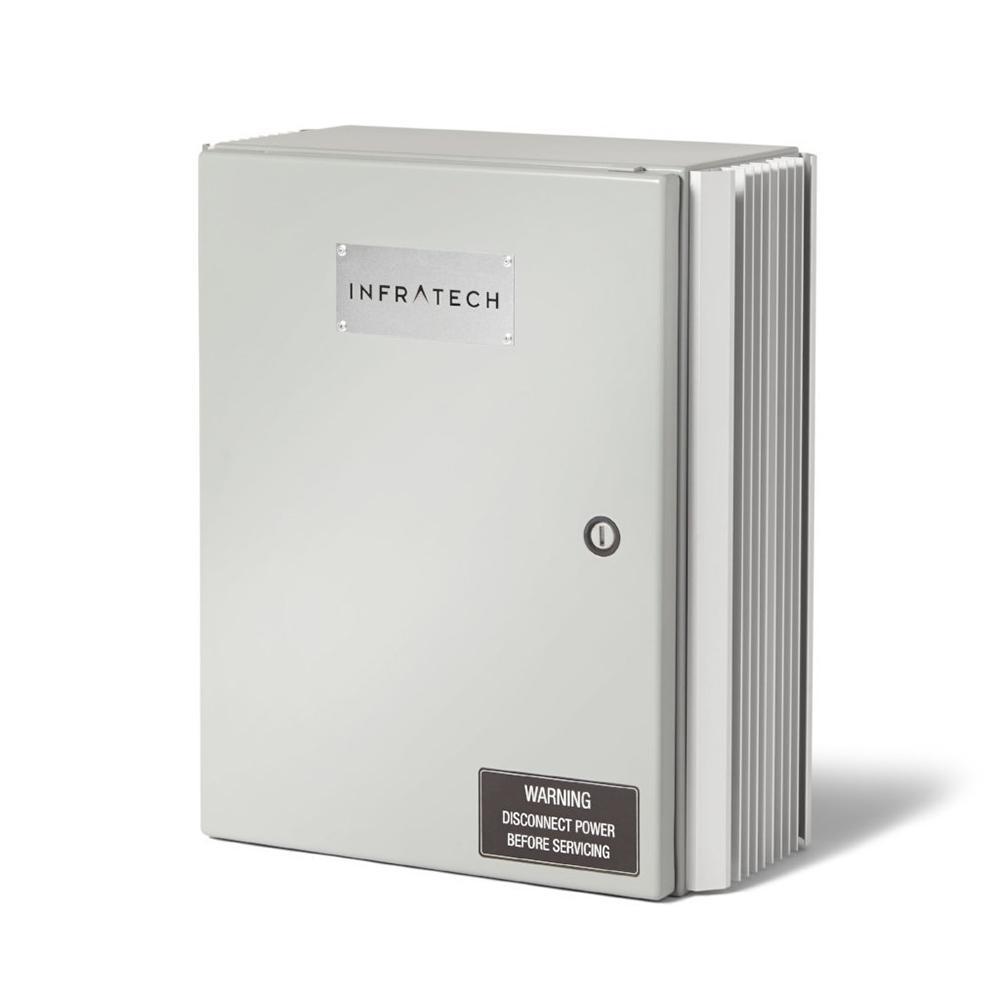

Infratech Control Boxes for Solid State Control Packages
Add increased functionality, convenience, and energy efficiency to your Infratech heating system with a custom control package. These 1, 2, 3, 4, 5 and 6 zone relay control panels are for use in conjunction with analog remote controllers. In addition to conserving energy, using Infratech controlling long-term heating and maintenance costs.
All main relay panels are project specific and include a NEMA 4/12 enclosure with a custom aluminum heat sink, terminal block, UL 489 breakers, and are pre-assembled. Control panels are UL 508 listed and work in conjunction with analog control assembly.
There are many options and configurations based on how you would like to control each heater, please contact Infratech customer service team for the best solution (Phone: 949-474-3070).
Select the right controls: Download Control Options Brochure. See all Available Control Options!
Note: Please include the voltage and any specific wiring requirements in the notes when placing your order.
For more information about the current lead time, email us at support@modernblaze.com.
Infratech Solid State Controls Videos:
FEATURES:
- Works in conjunction with zone analog controls
- All Relay Panels are NEMA 4 RATED, and completely weather resistant.
- 9,000 watt maximum for 240 volt
- 8,000 watt maximum for 208 volt
- 1 Zone Relay Control Panel:
- Interior measurements: 16" h x 12" w x 6" d
- Exterior measurements: 16" h x 14" w x 7" d
- 2 Zone Relay Control Panel:
- Interior measurements: 16" h x 12" w x 6" d
- Exterior measurements: 16" h x 14" w x 7" d
- 3 Zone Relay Control Panel:
- Interior measurements: 16" h x 12" w x 6" d
- Exterior measurements: 16" h x 14" w x 7" d
- 4 Zone Relay Control Panel:
- Interior measurements: 16" h x 12" w x 6" d
- Exterior measurements: 16" h x 14" w x 7" d
- 5 Zone Relay Control Panel:
- Interior measurements: 20" h x 16" w x 6" d
- Exterior measurements: 20" h x 18" w x 7" d
- 5 Zone Relay Control Panel:
- Interior measurements: 20" h x 16" w x 6" d
- Exterior measurements: 20" h x 18" w x 7" d
- UL Listed
- Made in the USA
- 3 Year Warranty
