Infratech Solid State Controls - Zone Analog Controllers

SKU 30 4045
$779.00

Shopping for a business? Join our trade program.
Flexible financing options. Details.
FREE Shipping / Returns. Details.
Current Manufacturing Time: 4-6 Weeks

Notify me when back in stock




Infratech Zone Analog Controllers for Solid State Control Packages

infratech authorized dealerIncrease your functionality, convenience and energy efficiency to your Infratech heating system with a custom control package. Infratech is a UL 508 listed manufacture and has the engineering, design and expertise to create custom UL listed control packages for any heating application.

In order for a custom package to be complete, a main relay control panel must be purchased. The 1 zone analog control can control up to 3 zones on a relay main control panel. The 2 zone analog control can control up to 6 zones on a relay main control panel (3 zones per dial). The 3 zone analog control can control up to 9 zones on a relay main control panel (3 zones per dial). The 4 zone analog control can control up to 12 zones on a relay main control panel (3 zones per dial).

There are many options and configurations based on how you would like to control each heater, please contact Infratech customer service team for the best solution (Phone: 949-474-3070).

Select the right controls: Download Control Options Brochure. See all Available Control Options!

Note: Please include the voltage and any specific wiring requirements in the notes when placing your order.

For more information about the current lead time, email us at support@modernblaze.com.


Infratech Solid State Controls Videos:


FEATURES:

  • UL listed
  • Zone Analog Controllers
  • Must purchase main relay control panel to complete Solid State Control Package
  • All Controllers are NEMA 12 RATED, and can be exposed to mist, but not direct rain.
  • Each Intensity Control Knob can control a maximum of three relays in the Relay Panel.
  • Enclosure Rating - Type 1 (must be installed in a protected location)
  • The ability to adjust heating intensity, to achieve the ideal comfort for your space.
  • Zone Heating – the capability to control one or more heaters to heat specified target areas within a large-scale space with a single touch.

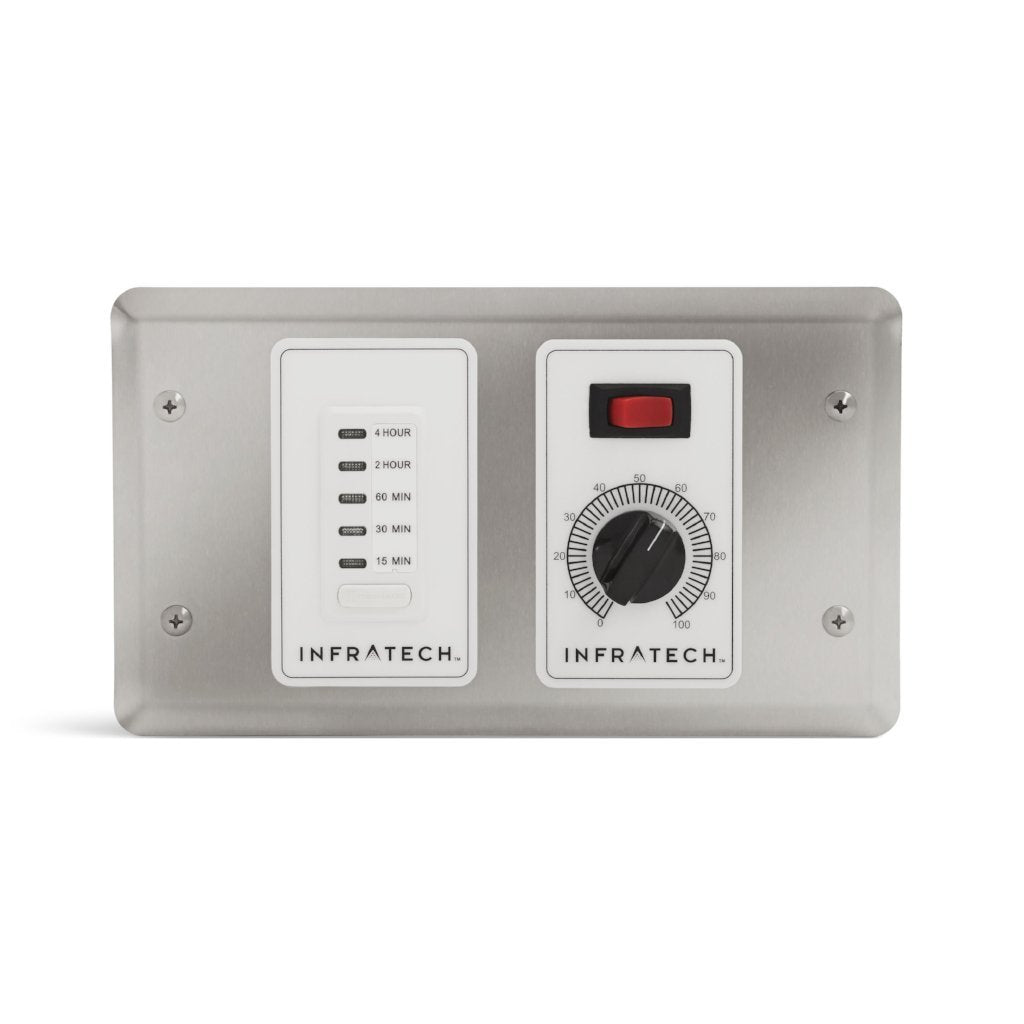

  • The Solid State Relay Panel and Zone Analog Controllers (with or without optional timer) work together and are project specific.
  • 1 Zone Analog Controller Dimensions:
    • Gang Box: 4 11/16" h x 4 11/16" w x 2 1/4" d
    • Face Plate: 5 11/16" h x 5 11/16" w
  • 2 Zone Analog Controller Dimensions:
      • Gang Box: 4 1/2" h x 8 5/8" w x 2 1/2" d
      • Face Plate: 5 1/2" h x 9 1/2" w
    • 3 Zone Analog Controller Dimensions:
      • Gang Box: 4 1/2" h x 12 1/4" w x 2 1/2" d
      • Face Plate: 5 1/2" h x 13 3/16" w
    • 4 Zone Controller Dimensions:
      • Gang Box: 4 1/2" h x 14 3/16" w x 2 1/2" d
      • Face Plate: 5 1/2" h x 15" w
    • Made in the USA
    • 3 Year Warranty
