EcoSmart Fire | Electric Fireplace | ESF.1.MN.30SS

EcoSmart Fire Motion Linear Built-In Electric Fireplace

Regular price $4,995.00

An electric fireplace that plays a moving flame on a screen, with the sound of a crackling fire. Choose a wood, gas or hybrid flame style for an indoor wall.

Prefer a different flame? See the EcoSmart Switch.

Call to Order

Call or text 1-866-713-2399 to get the best deal!

Made to order with FREE U.S. delivery + this item cannot be returned. Est. manufacturing time: 2-4 Weeks

Best Price Guarantee

  • Lowest Price Online, Guaranteed. If you find the same product for less at another authorized dealer, we’ll match or beat it.
  • Easy to Claim: click here to submit your price match request
  • Qualifications: Item must be identical, in stock, new (not refurbished/open-box), and sold by an authorized dealer. Total cost (including shipping & tax) must be lower.
  • Peace of Mind: All details you provide are kept completely confidential. We use this information only to verify the price.

Installation

Need installation support? We’ll help you find a qualified pro.

Click here to submit a request.

Request a Quote

Need a price or shipping estimate? Click here to request a quote.

Request a Quote

Price Match Request

Loading...

Installation Support Request

Description

A Built-In Electric Fireplace With Video Flame and Sound

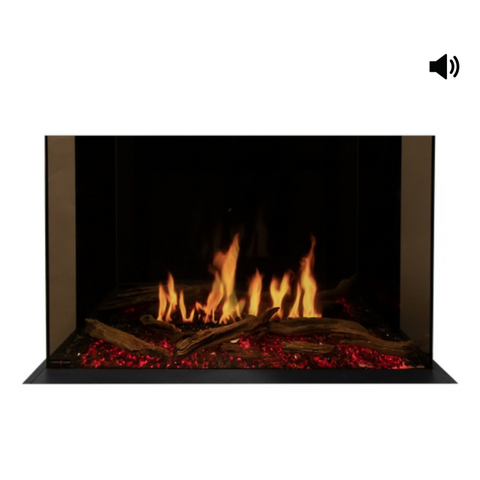

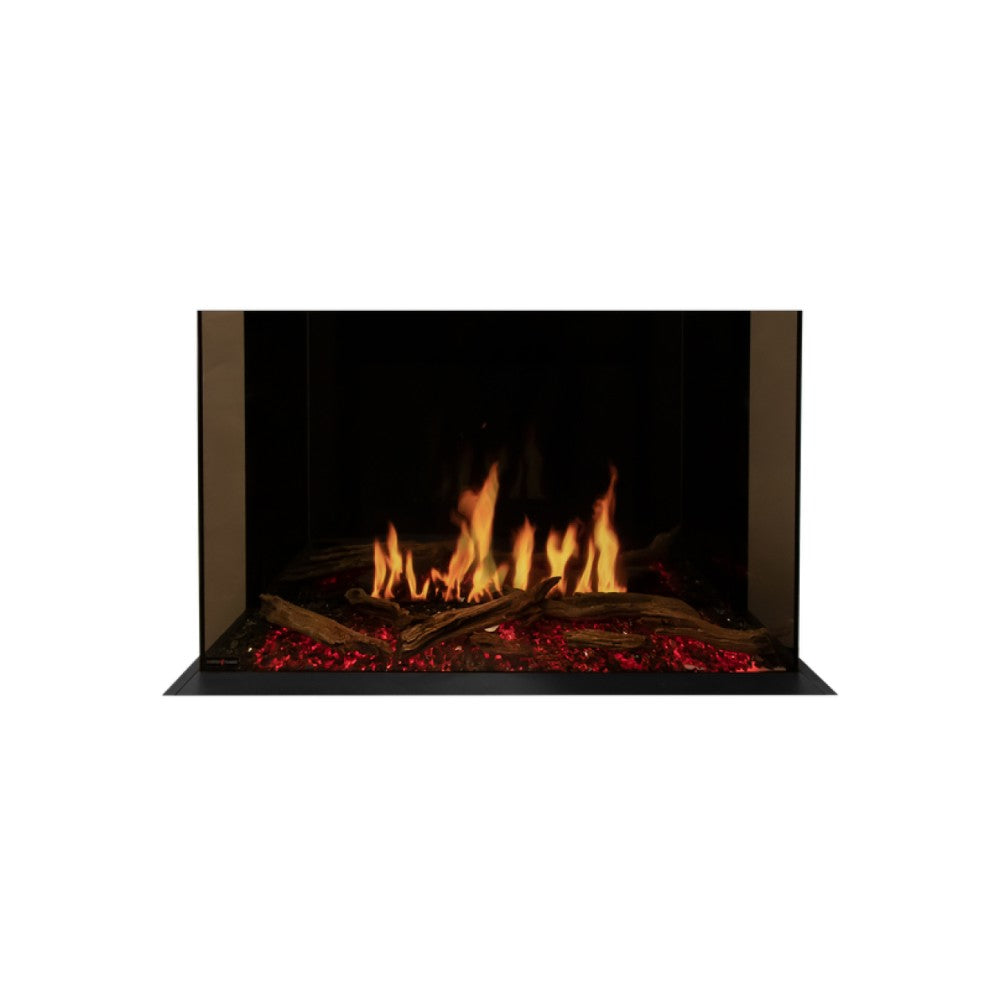

The EcoSmart Fire Motion is a long electric fireplace that shows a moving flame on a screen behind the glass, over a bed of driftwood logs and black crushed glass, with the crackle of a wood fire playing quietly underneath. It sits in the wall like a built-in or hangs on it, and it runs with or without heat. It is made for indoor rooms, and you can have a front view only or a fireplace open at one or both ends.

Three Flame Styles Named for Wood, Gas and a Mix of Both

EcoSmart calls it Motion Picture technology: the flame is a video on an LCD screen, and the logs and crushed glass in front of it catch the light so it reads with depth from an angle. Each of the three styles has six color presets and three speeds. The ember bed and the downlight change color on their own, the fire sound has three volume levels or off, and a timer shuts it down after 30 minutes to 8 hours.

The Heater Runs Only While the Flame Is On

Heat comes from a fan-forced heater, about 5,000 BTU on 120 volts and about 10,000 BTU when wired to 240 volts, the same at every width. EcoSmart rates that at roughly 300 and 600 square feet of supplemental heat. The flame runs without heat, but the heater will not run without the flame, and a fan-only setting moves air in summer without warming it.

Indoor Use Only, Even Under a Covered Patio Roof

EcoSmart rates the Motion for indoor installation only, and its manual says plainly not to use it outdoors or expose it to rain. That rules out a covered patio or a screened porch. Indoors it suits homes, apartments and condos, and EcoSmart also names restaurants, bars, cafes and lobbies.

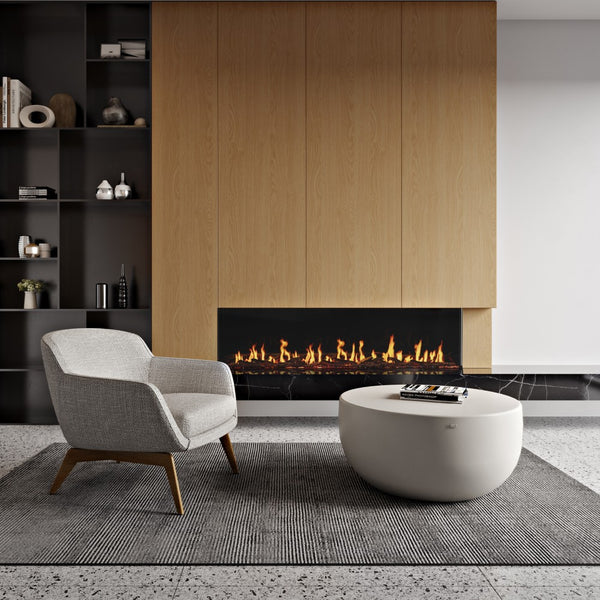

Best for Media Walls, Bedrooms and Hospitality Spaces

Pick the Motion when the flame is the point of the room and you want it to look like fire rather than a light pattern. The narrowest size fits a bedroom wall or a small media wall, and the widest runs past 10 feet for a lobby or a long living room; with a TV above, choose a width at least as wide as the screen. Single Sided shows the front only, Left or Right Corner opens one end, and Bay View opens both. For a covered patio, or for a flame you can recolor zone by zone, look at the EcoSmart Switch.

A Full Recess Needs 9 Inches, Deeper Than a 2x6 Wall

For a flush, fully recessed install the framed opening is 24 3/4 inches high and at least 9 inches deep, so plan a framed chase or bump-out; a 2x6 wall gives only 5 1/2 inches. A partial recess needs 2 5/8 inches, and for wall mounting the bracket on the back screws into at least two studs. Keep 11.8 inches above the fireplace to a mantel, TV or ceiling, and 36 inches between the front and curtains or furniture. A qualified electrician hardwires it to a dedicated 20 amp circuit, 2-pole for 240 volts. After a power cut it takes 20 to 30 seconds to boot. Lead time is shown above the cart.

Features

  • Three flame styles, wood, gas and hybrid, each with six color presets
  • Crackling fire sound with three volume levels, or switched off
  • Flame speed, ember bed color and downlight color all adjust on their own
  • Shut-off timer from 30 minutes to 8 hours
  • Fan-only setting moves air without heat in warm weather
  • Flame and lights run without heat for year-round use

Specifications & Manuals

  • Fuel Type
    Electric
  • Venting Type
    Ventless
  • Installation
    Indoor, Built-in, Wall Mounted, Flush Mounted
  • Viewing Configuration
    Single-Sided, Open Corner, 3-Sided
  • Style
    Linear
  • Aesthetic
    Modern
  • Width
    30"
  • Height
    23.9"
  • Depth
    9.4"
  • Weight
    51.15 lbs
  • BTU Output
    5,000 (120V) / 10,000 (240V) BTU
  • Heat Coverage
    300 sq. ft. (120V) / 601 sq. ft. (240V)
  • Voltage
    120V / 240V
  • Wattage
    1,500W / 3,000W
  • Circuit Requirement
    Hardwired, Dedicated 120V 20A Circuit, Dedicated 240V 20A Circuit
  • Material
    Metal, Steel
  • Color
    Black
  • Certifications
    CSA Certified
  • Warranty
    1-Year Limited Manufacturer's Warranty
  • Manuals

What's In The Box

  • Electric Fireplace - 1 pc.
  • Western Driftwood Log Set - 1 set
  • Black Crushed Glass - 1 bag
  • Remote Control - 1 pc.
  • Wall Mounting Bracket (attached to the back) - 1 pc.
  • Screws and Drywall Anchors - 1 set
  • Owner's Manual - 1 pc.

EcoSmart Fire Motion Linear Built-In Electric Fireplace FAQ's

Is the EcoSmart Motion flame a video?

Yes. EcoSmart's spec sheet describes an LCD screen and the manual calls it the flame video. Driftwood-style logs and black crushed glass sit in front of the screen, so the flame catches on them and looks deeper as you move around the room.

Can the Motion go outdoors or on a covered patio?

No. EcoSmart rates it for indoor use only, and the manual says not to use it outdoors or expose it to rain. For a covered patio, EcoSmart's Switch is the approved choice.

How is the Motion different from the EcoSmart Switch?

It trades outdoor approval for a more lifelike flame. The Motion plays a video flame with fire sound and a timer, sits about 2 inches shallower, and starts at a 30-inch size; the Switch uses an LED flame you recolor zone by zone and can go under a patio cover. Both give the same heat on 120 or 240 volts.

Can the Motion be recessed into a 2x6 wall?

Not fully. A flush, fully recessed install needs an opening at least 9 inches deep, and a 2x6 wall gives 5 1/2 inches. In a standard wall, use the partial recess (2 5/8 inches deep) or mount it on the wall.

Can I mount a TV above the Motion?

Yes, with at least 11.8 inches of clearance above the fireplace to the TV, the same as for a mantel or a ceiling. For looks, choose a fireplace at least as wide as the screen.

Does it have to be hardwired?

Yes. A qualified electrician connects it to a dedicated 20 amp circuit, with a 2-pole breaker for 240 volts and about 10,000 BTU. On 120 volts it gives about 5,000 BTU.
