EcoSmart Fire | Ethanol Firebox | ESF.HB.26SS

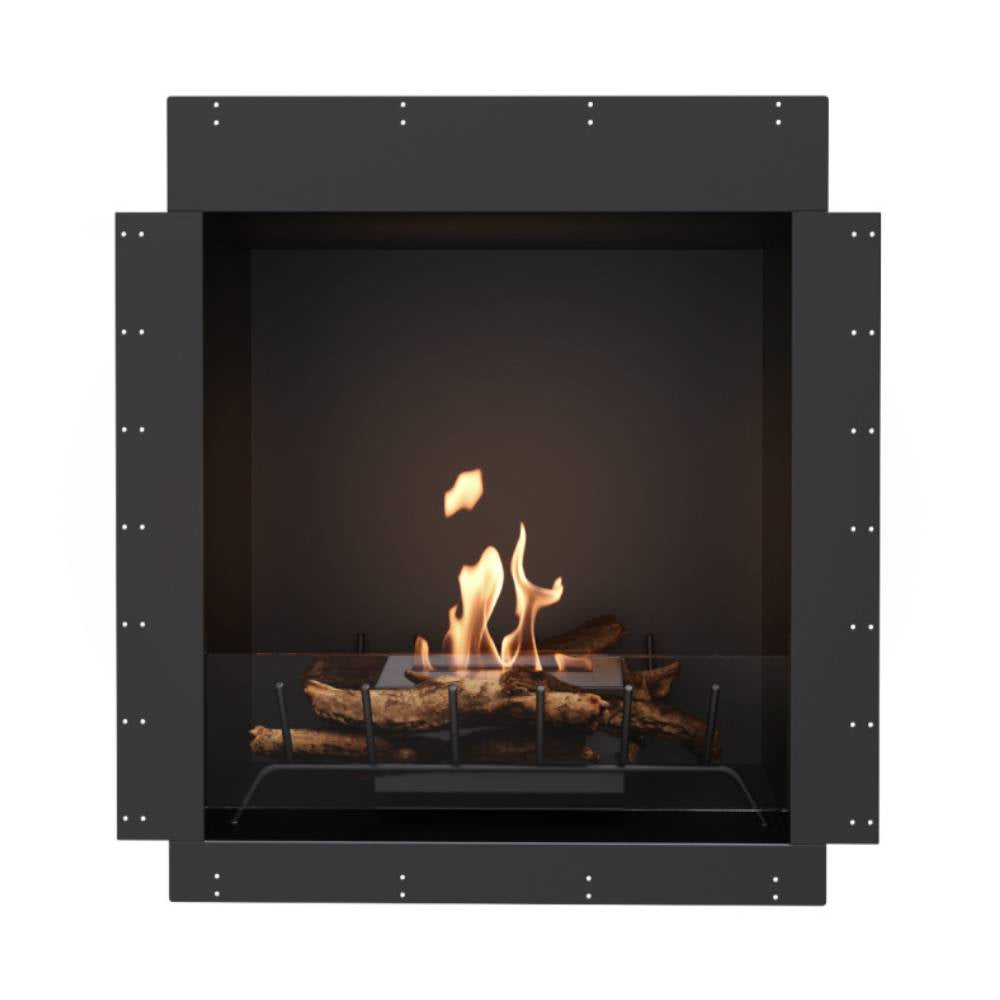

EcoSmart Fire Heritage Built-In Zero Clearance Traditional Ethanol Firebox

Regular price $3,495.00

A built-in ethanol firebox that gives a wall with no chimney a classic log-fire hearth. It frames in like any zero-clearance fireplace and arrives with its own grate, logs and glass screen.

Call to Order

Call or text 1-866-713-2399 to get the best deal!

Made to order with FREE U.S. delivery + this item cannot be returned. Est. manufacturing time: 12-16 Weeks

Best Price Guarantee

  • Lowest Price Online, Guaranteed. If you find the same product for less at another authorized dealer, we’ll match or beat it.
  • Easy to Claim: click here to submit your price match request
  • Qualifications: Item must be identical, in stock, new (not refurbished/open-box), and sold by an authorized dealer. Total cost (including shipping & tax) must be lower.
  • Peace of Mind: All details you provide are kept completely confidential. We use this information only to verify the price.

Installation

Need installation support? We’ll help you find a qualified pro.

Click here to submit a request.

Request a Quote

Need a price or shipping estimate? Click here to request a quote.

Request a Quote

Price Match Request

Loading...

Installation Support Request

Description

A Traditional Log Fireplace for Rooms With No Chimney

The EcoSmart Fire Heritage is a complete ethanol fireplace in a black steel box: a traditional grate and ceramic logs around a real flame, behind a glass screen, ready to build into a wall. It puts a classic fireplace where there has never been one, with no chimney, gas line or wiring, because it burns bioethanol. Think of it as the whole fireplace, not a part for one you already have.

The 26 and 42 Share a BK5 Burner, the 56 Gets an XL900

The heat comes from the burner, not the size of the box. The 26 and the 42 both run EcoSmart's compact BK5 at 13,000 BTU, so the 42 buys a wider opening and a bigger look rather than more warmth. The 56 steps up to the linear XL900 at 15,000 BTU. EcoSmart rates the BK5 models to warm about 377 square feet on average and the 56 about 646, with a full burner lasting 7 to 11 hours on the smaller two and 8 to 13 on the largest. Treat it as supplemental warmth; EcoSmart does not rate it as a primary heat source.

It Frames Into Wood or Metal Studs With Zero Clearance

Because it brings its own firebox, the Heritage does not need a masonry fireplace. The steel box is zero clearance, with its clearance to the framing built in, so it goes into a wood or metal stud wall, and EcoSmart shows it set flush with the wall, partly recessed or standing out from it. Frame the opening to the size the manual gives for your model, at least 23 inches deep, and make the framing above self-supporting, since the firebox carries no load. Finish around it in fire-rated board, stone, tile or steel, and never let facing material overhang into the opening.

It Ships Flat-Packed and Assembles With a Screwdriver

The firebox arrives as steel panels that screw together before it goes into the wall. Once it is in place, the grate screws to fixed points in the floor, the burner drops into the grate, the glass screen slides into its slots, and the ceramic logs go around the burner, never on top of it. Allow for the weight when you plan the platform: the 56 is about 186 pounds with its grate and burner.

Best for New Walls That Need a Classic Fireplace Look

Choose the Heritage for an apartment, a basement, an addition or a remodel where you want a traditional fireplace and there is no chimney to put one in. If you already have a masonry fireplace and only need the flame, the EcoSmart Fire Heritage Grate is the simpler choice, made to sit inside the firebox you have. For a modern linear flame instead, see EcoSmart's Flex fireboxes.

Keep It Clear, Keep It Open, and Cover It Outdoors

Indoors, keep furniture, drapes and anything that can burn at least 23.6 inches from the sides and 59 inches above. Outdoors, it must sit under an overhang or roof extension so rain stays out, with 78.7 inches clear above, because water damage from an exposed spot is not covered by the warranty. It is not designed for doors, since the flame needs a constant supply of air, and EcoSmart sets a minimum room size: about 2,472 cubic feet for the BK5 models and 3,885 for the 56. Burn e-NRG bioethanol only, sold separately. The lead time is shown above the cart.

Optional Accessories

e-NRG Bioethanol Fuel and a spare e-NRG Jerry Can.

Features

  • Traditional grate and ceramic log setting around a real flame
  • Sliding burner lid sets the flame height and closes to put it out
  • Glass fire screen steadies the flame and keeps hands back from it
  • Sets flush with the wall, partly recessed or standing out from it
  • Refills from the included jerry can and lights with the long lighting rod

Specifications & Manuals

What's In The Box

  • Heritage Firebox, flat-packed panels with screws and washers - 1 set
  • BK5 Ethanol Burner (26SS, 42SS) or XL900 Ethanol Burner (56SS) - 1 pc.
  • Grate Insert - 1 pc.
  • Decorative Ceramic Logs - 1 set
  • Glass Fire Screen - 1 pc.
  • XL Baffles (56SS only) - 1 set
  • Jerry Can 5L with Safety Spout - 1 pc.
  • Bottle Adaptor - 1 pc.
  • Lighting Rod - 1 pc.
  • Fire Lighter - 1 pc.
  • User's Manual - 1 pc.

EcoSmart Fire Heritage Built-In Zero Clearance Traditional Ethanol Firebox FAQ's

What is the difference between the Heritage firebox and the Heritage Grate?

The Heritage firebox is a complete fireplace you build into a wall, with its own steel box and glass screen. The Heritage Grate is a grate, logs and burner made to sit inside a masonry fireplace you already have.

Does the Heritage need a chimney or vent?

No. It burns bioethanol, which needs no flue, gas line or electrical connection. It does need a room at or above EcoSmart's minimum size, about 2,472 cubic feet for the 26 and 42 and 3,885 for the 56.

Can the Heritage be installed outdoors?

Yes, under an overhang or roof extension that keeps rain out of the firebox. EcoSmart's warranty does not cover damage from an exposed installation.

Does it come assembled?

No. The firebox ships as flat-packed steel panels that screw together, then the grate, burner, glass screen and logs go in. The manual walks through each step.

How much heat does the Heritage give off?

The 26 and 42 put out about 13,000 BTU from the BK5 burner, warming about 377 square feet on average. The 56 puts out about 15,000 BTU from the XL900, about 646 square feet.

What size opening do I frame for it?

EcoSmart's framed openings are about 30.5 inches wide by 30.5 tall for the 26SS, 46 by 36.5 for the 42SS and 60 by 45 for the 56SS, each at least 23 inches deep. Check the unit against the opening before finishing the wall.
