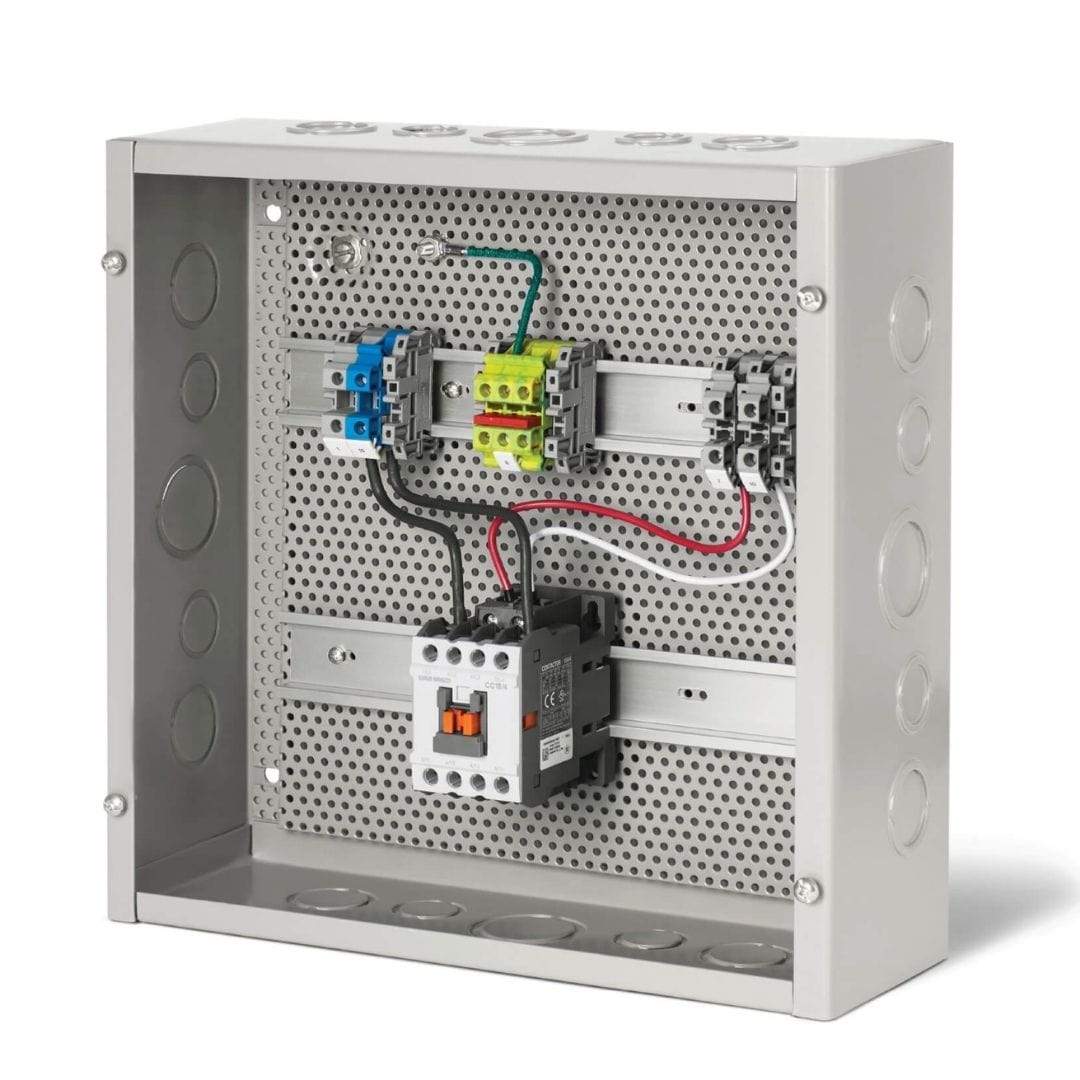

Infratech Contactor Panel

Mix And Match Heaters Of Different Wattage Ratings On The Same Circuit With This Contactor Panel

This contactor panel is designed for use with all Infratech heaters, single or dual element. The timer function allows the user to control the on/off cycle of any heater and maintain a consistent temperature throughout the day by turning it off during non-use hours.

The Contactor Panel is an easy-to-use solution that adds digital timer functionality to your existing switches. This panel works with all Infratech single element and dual element heaters up to 6,000 watts at 240 volts. It enables you to easily integrate timers and other 120 VAC controls into your system without the need for any additional wiring or control boards.

An optional flush mount door for the flush-mounted Contactor Panel (Sold separately) is available for easy access.

Don't delay and take advantage of our free shipping offer. Order now!

Select the right controls: Download Control Options Brochure. See all Available Control Options!

FEATURES:

• Contactor panel can be ordered as a single contactor, or a dual contactor panel, and whichever heaters are connected to each contactor will be controlled together.

• Peace of mind in integrating a timer without having to expand your budget on custom dimming panels and controls.

• Compact design allows for indoor surface or flush mount applications.
• Compatible with all Infratech single element or dual element heaters

• Set the time from 15 mins to 2 hours so heaters will automatically turn off
• Enables integration of timers and other 120 VAC controls, including smart switches (not compatible with input regulator controls)
• Ability to mix and match heaters to be controlled by a single switch
• 6,000 W, maximum range 240 VAC per contactor
• The Dual Contactor Panel can handle maximum 12,000 W
• Contactor panel must be installed indoors in a dry well-ventilated space.
• Ideal for indoor surface mount or flush mount applications (Type 1 enclosures, for indoor use only).
• Can be surface mounted on the wall – comes with a front cover.
• Made in the USA, ensures high-quality materials and superior craftsmanship.

Downloads:



Free and Fast Shipping! Read our full Shipping Policy here.

We offer market-leading 30-Day Free Returns! Read more about our Returns Policy here.

INFRATECH warrants that this electric heater is designed and manufactured to be free from defects in materials and workmanship
for a period of TWO YEARS from original date of purchase.

Click to Download Infratech Warranty Document
