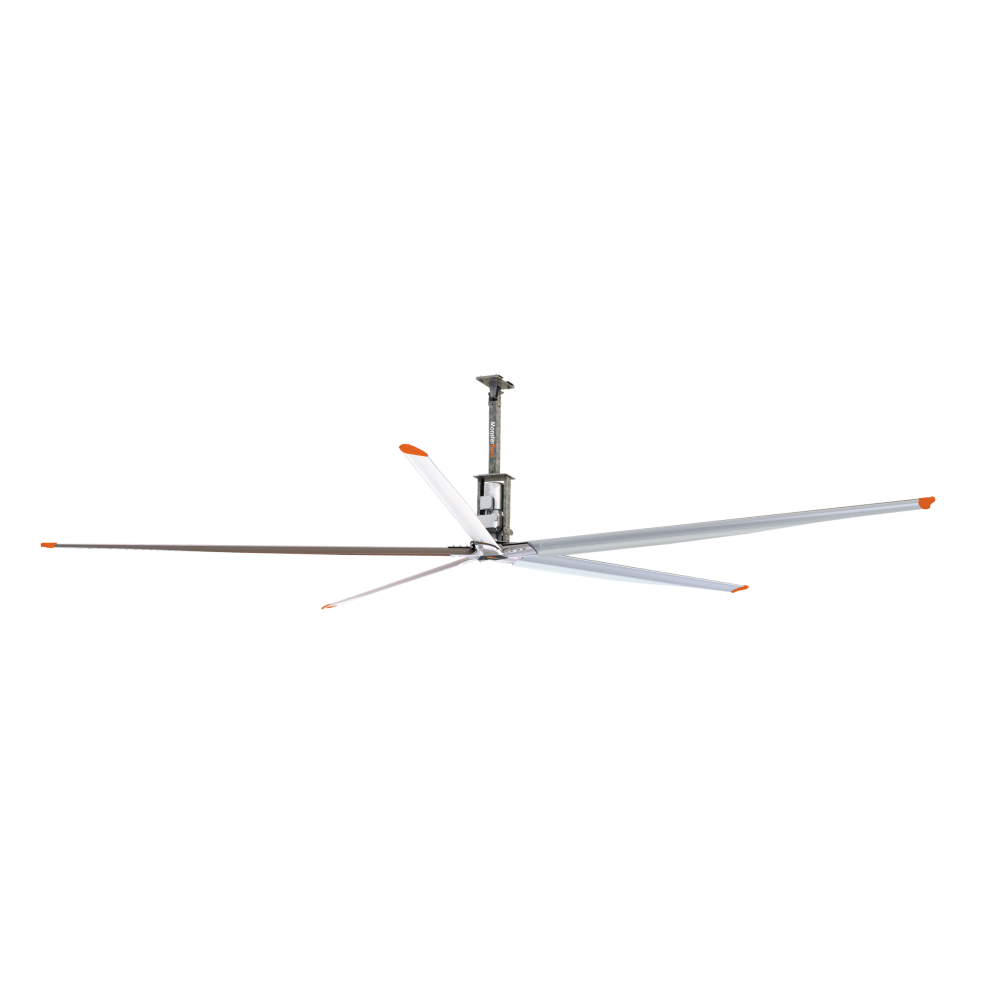

Schwank MonsterFans GD Series HVLS Industrial Fan

Discover the Schwank MonsterFans GD Series - Your Ultimate HVLS Industrial Fan Solution

In large spaces such as warehouses, gyms, or industrial facilities, maintaining comfortable temperatures and proper air circulation can be a challenge.

Imagine working in a hot and stuffy environment where the air feels stagnant. Sweat drips down your face as you struggle to focus on your tasks. The discomfort is distracting, affecting productivity and overall well-being.

Introducing the Schwank MonsterFans GD Series fan - the ultimate solution to your ventilation needs. With its impressive diameter range of 8ft – 24ft [2.4m – 7.3m] and maximum speeds of 53-105 RPM, this fan is designed to deliver a powerful airflow that covers large areas with ease.

But it doesn't stop there. The GD Series fan is equipped with a Helical Inline Reducer motor that ensures whisper-quiet operation, making it ideal for sensitive environments where noise can be disruptive.

On top of that, this fan generates a refreshing breeze of up to 6 MPH, effectively cooling down areas as large as 230 ft². Say goodbye to stuffy air and hello to improved comfort and productivity.

Don't settle for subpar ventilation solutions. Choose the Schwank MonsterFans GD Series HVLS Industrial Fan for unparalleled performance, quiet operation, and efficient cooling across large spaces.

Note: The lead time for this product is 3-4 weeks

What's Included: Mounting Kit, Guy Wires, Main Hub & Drive, Blades, and User's Manual

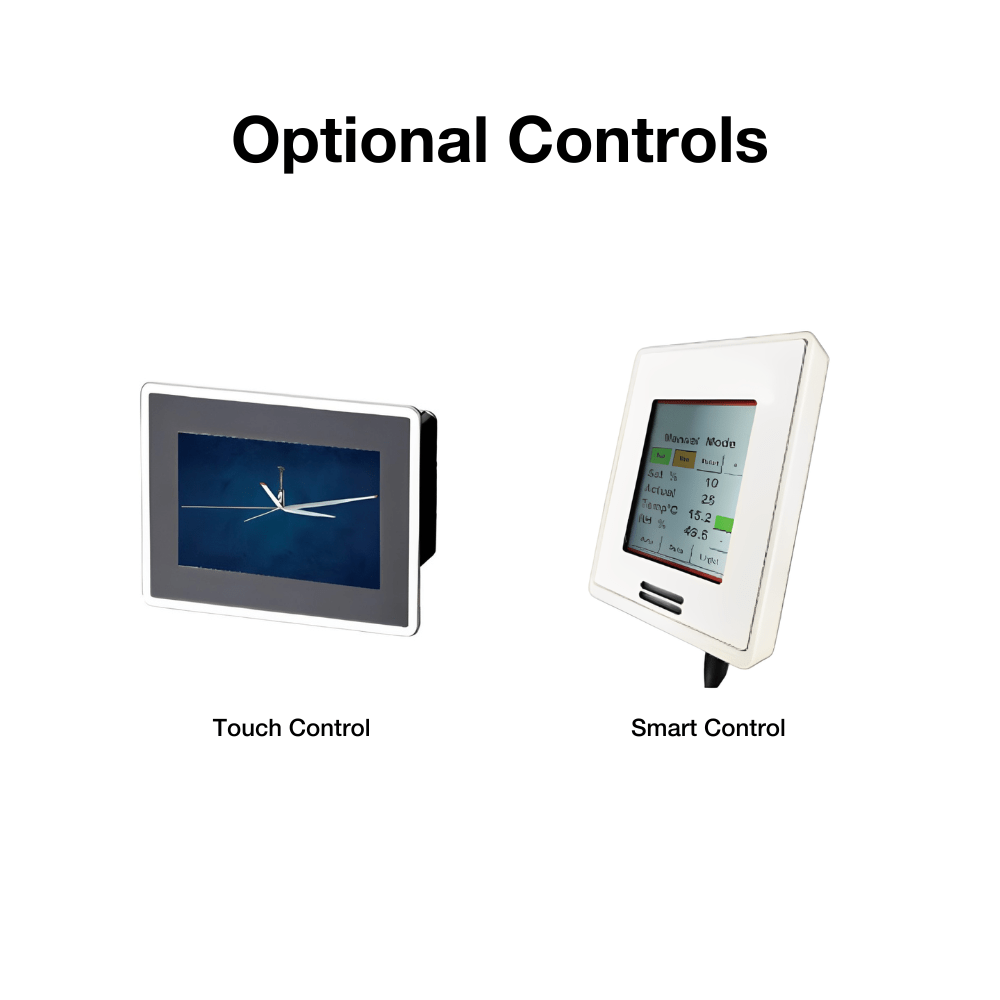

Optional Accessories: Touch Control, Smart Control, Wind Sensor, Mounting Kits, and Variable Frequency Drives

Schwank MonsterFans GD Series Videos:

Features:

• Low maintenance required, with recommended inspections every 20,000 hours
• The fan features five airfoil blades, each 10 ¼” wide, enabling powerful airflow
• Unique blade design allows for an angle of attack of up to 23°
• Equipped with a geared motor for protection against dust, water, and vapors, suitable for both indoor and outdoor environments
• Utilizes a helical inline reducer motor operating at speeds ranging from 53 to 105 RPM
• Incorporates five airfoil blades with modulating trailing edges
• Hub made of durable 713 cast aluminum alloy, ensuring longevity
• Operates quietly with noise levels between 62 and 63 dBA
• Voltages include:

• 208–240 VAC, 50/60 Hz, 1 Φ
• 208–240 VAC, 50/60 Hz, 3 Φ
• 400–480 VAC, 50/60 Hz, 3 Φ
• 575–600 VAC, 50/60 Hz, 3 Φ;
• Dimensions:
• 8-ft.: 27.96" H x 96" Diameter
• 12-ft.: 27.96" H x 144" Diameter
• 16-ft.: 2796" H x 192" Diameter
• 20-ft.: 27.96" H x 240" Diameter
• 24-ft.: 27.96" H x 288" Diameter
• UL and CSA Certified
• Lifetime warranty on blades, hub, and mounting system
• 5-year warranty on motor, gearbox, and control panel

What's in the Box:

• Mounting Kit - 1 set
• Guy Wires - 1 set
• Main Hub & Drive - 1 set
• Blades - 5 pcs.
• User's Manual - 1 pc.
