Infratech CD-Series Patio Heaters

The Infratech CD Series puts two heating elements in the same housing as the single element C Series, so one heater covers a bigger area and can run on a low or high setting. The collection spans standard models in stainless steel or a choice of powder-coated colors, Marine Grade models in 316 stainless for salt air, and a two-heater kit with Infratech's Universal Control Panel.

Authorized Dealer • Full Warranties • Free US Shipping

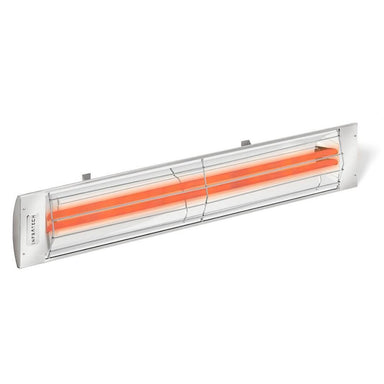

    Infratech CD Series Dual Element Infrared Heaters

    A CD Series heater is a C Series heater with a second element. Same length, same mounting, more heat. With both elements on, it covers more of a patio from one spot. With one element on, it gives you a gentler setting for a mild evening.

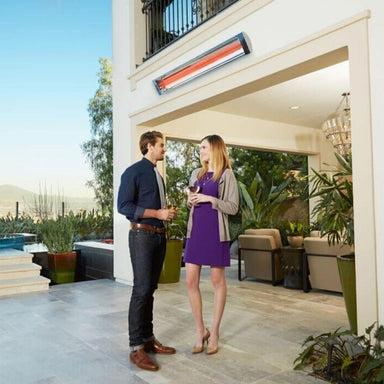

    It mounts on a wall or ceiling, or on a drop pole under a high ceiling. Infratech lists flush mounting as not compatible with the CD Series. For a recessed dual element heater, choose the WD Series.

    Finishes, Marine Grade and Decorative Fronts

    Standard CD heaters come in brushed stainless steel or a powder-coated color. Marine Grade models use 316 stainless steel for coastal homes and come in stainless only. To change the look, a Motif fascia kit fits the 39, 48 and 61 inch CD heaters.

    Controls for Dual Element Heaters

    To use the two settings, wire the heater to a duplex stack switch, which turns each element on and off separately. The Universal Control Panel adds dimming and phone control. Our two-heater CD kit pairs it with two 61 inch heaters. All options are in Infratech controls, and every series is on Infratech heaters.

    Frequently Asked Questions about Infratech CD-Series Patio Heaters

    What does dual element mean on an Infratech heater?

    The heater has two heating elements in one housing instead of one. Wired to a duplex stack switch, each element turns on separately, so you can run the heater on one element for a lower setting or both for full heat.

    Can Infratech CD Series heaters be flush mounted?

    No. Infratech lists flush mounting as not compatible with the CD Series. The WD Series is the dual element heater built to recess into a ceiling with a flush mount frame. The CD Series mounts on a wall, a ceiling or a drop pole.

    How high do you mount an Infratech CD Series heater, and how much area does it cover?

    From Infratech's coverage chart: the 33 inch at 7 to 8 feet covers about 7 by 7 feet, the 39 inch at 8 to 10 feet about 8 by 10, the 48 inch at 8 to 10 feet about 10 by 10, and the 61 inch at 8 to 12 feet about 11 by 11. These are averages and shrink in very cold or windy conditions.

    What voltage does an Infratech CD Series heater need?

    CD heaters run on 208V or 240V for homes, with 277V and 480V versions for commercial buildings. There is no 120V CD heater. Pick the voltage on the product page to match the circuit your electrician will run.

    Which control works with an Infratech CD Series heater?

    A duplex stack switch is the simplest, and it lets you switch each element separately. The Universal Control Panel, contactor panel, solid state zone controllers and home management panels also work. The INF input regulator does not: it is for single element heaters only.

    What comes in the Infratech CD Series two-heater kit?

    Two 61 inch CD Series heaters and a Universal Control Panel set up as two zones, with smart dimmers. You can run one heater or both, dim each one, and control them from your phone or a smart speaker.
